FM Broadcasting Antenna Systems
We provide a wide variety of FM broadcasting Antenna Systems suitable for all FM broadcasting
network applications. We use a powerful solid CAD model system design software with
international orographic maps converted from satellite surveys to optimize the antenna system
based on the FM Network specification. Antenna systems can be Omnidirectional or Directive,
depending on the requested coverage area.
P1 SERIES

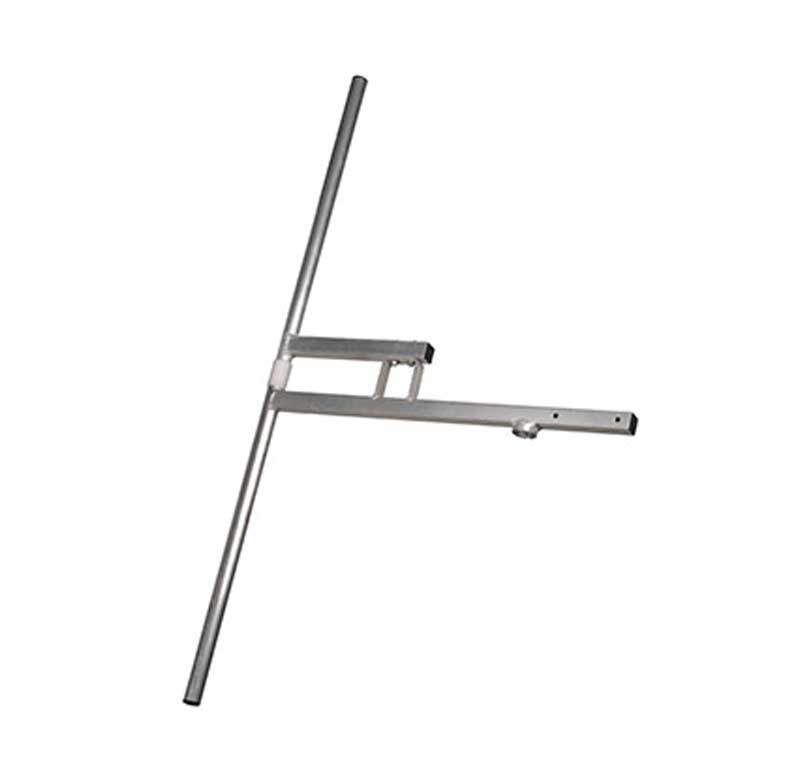

The P1 Vertical Polarization Dipole Antenna series is designed for FM Broadcast Band (87,5 –108 MHz). Each antenna is composed of one balun feed vertical dipole and is made of stainless steel (PX1 models) or resistant aluminum alloy (P1 models).

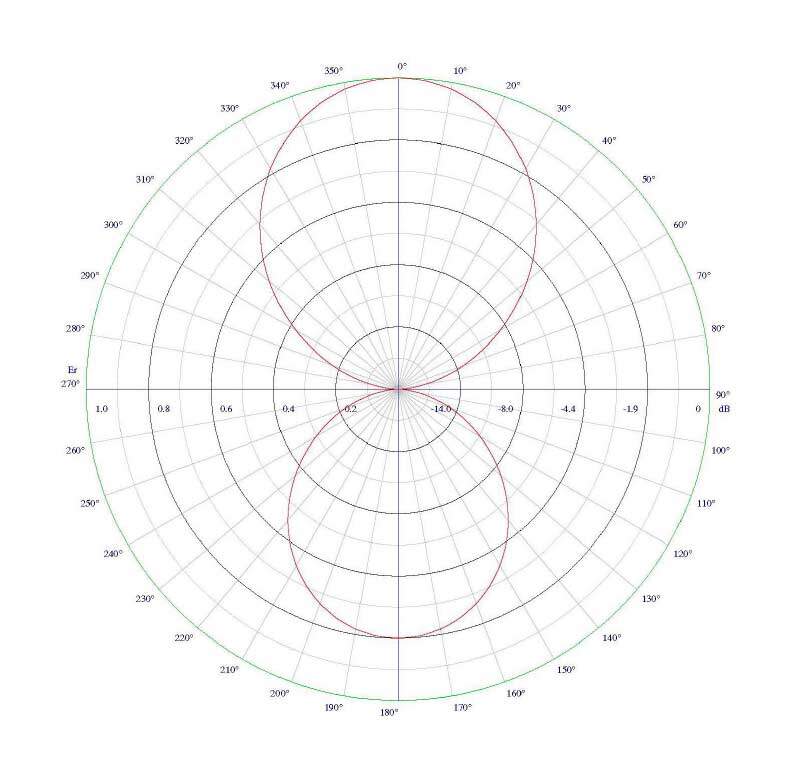

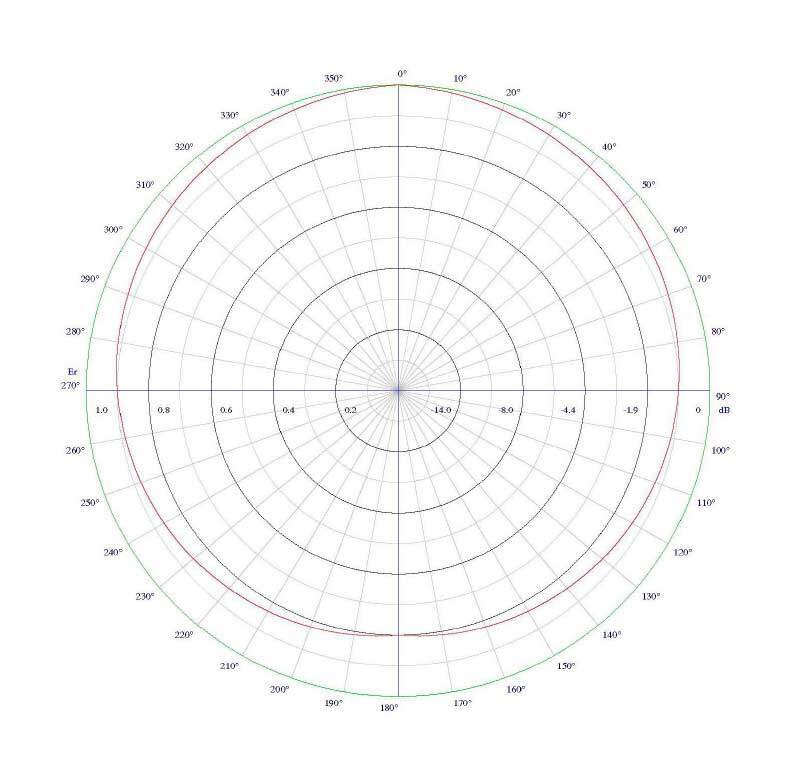

- Omni-Directional. The radiation pattern is omnidirectional.
- Antenna systems. By stacking more antennas it is possible to obtain customized patterns, to increase the gain and the power handling capacity according to user’s requirements. Custom patterns, electrical beam tilt and null fill designs are available upon request.
- Broadband. Suitable for single channel or broadband operations with multi-channel combiners. Easy installation. The standard mounting brackets are designed for instant installation on poles with diameters from 32 mm to 90 mm. Special brackets are available upon request.
- Water, icing, moisture protection. The input connector is protected against rain and icing by a special housing. The internal balun is also protected against water, icing and moisture by a sealed housing.
- State of the art mechanical design. By employing the finest materials (stainless steel, non-corrosive aluminum alloy, marine brass, virgin
PTFE) it is assured a longer life service
OCS SERIES

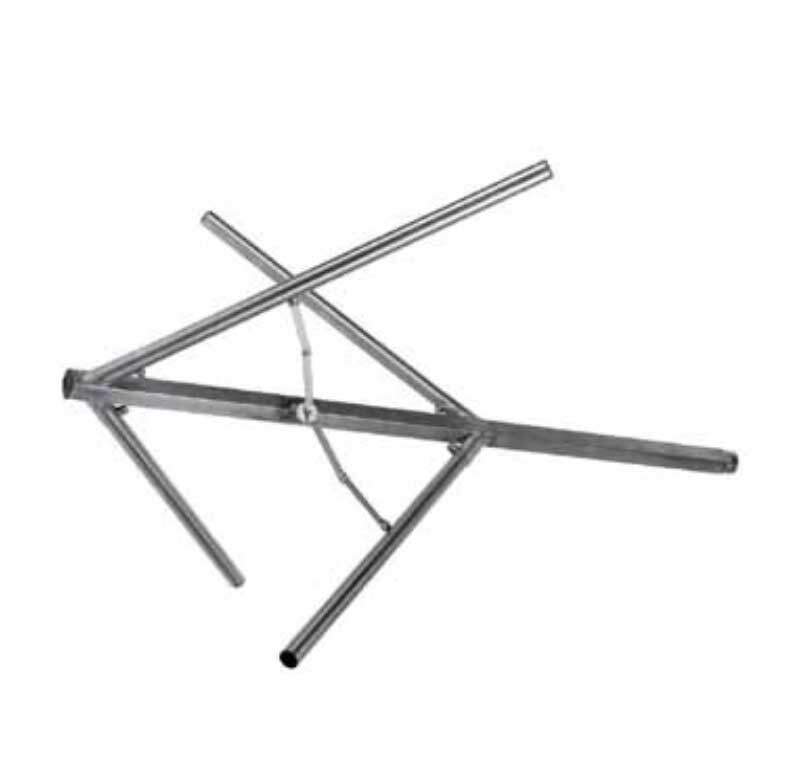

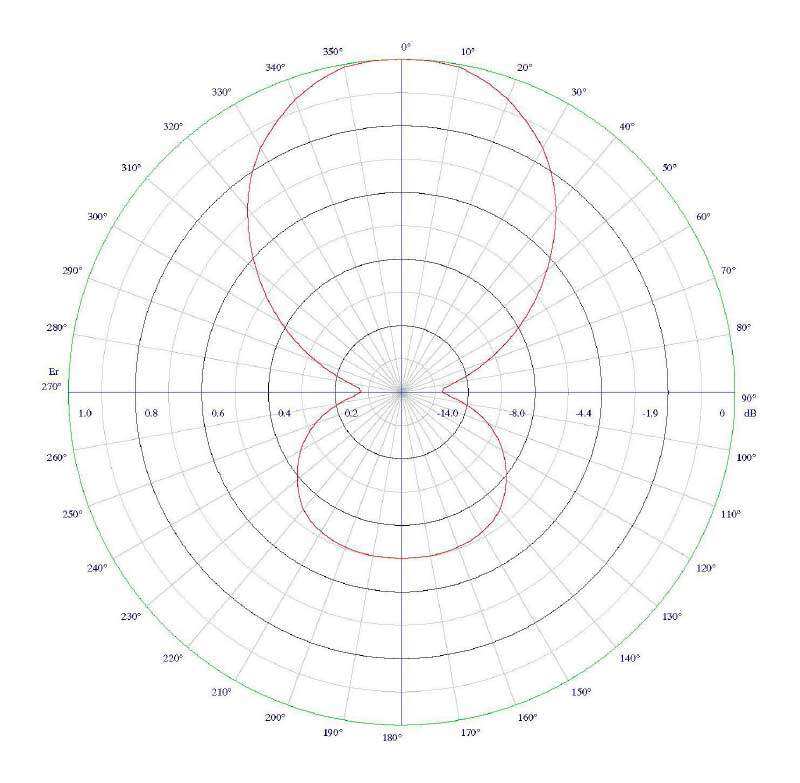

The OCS Circularly Polarized Antenna series is designed for FM
Broadcast Band (87,5 -108 MHz). Each antenna is entirely made of
stainless steel and composed of two folded dipoles.

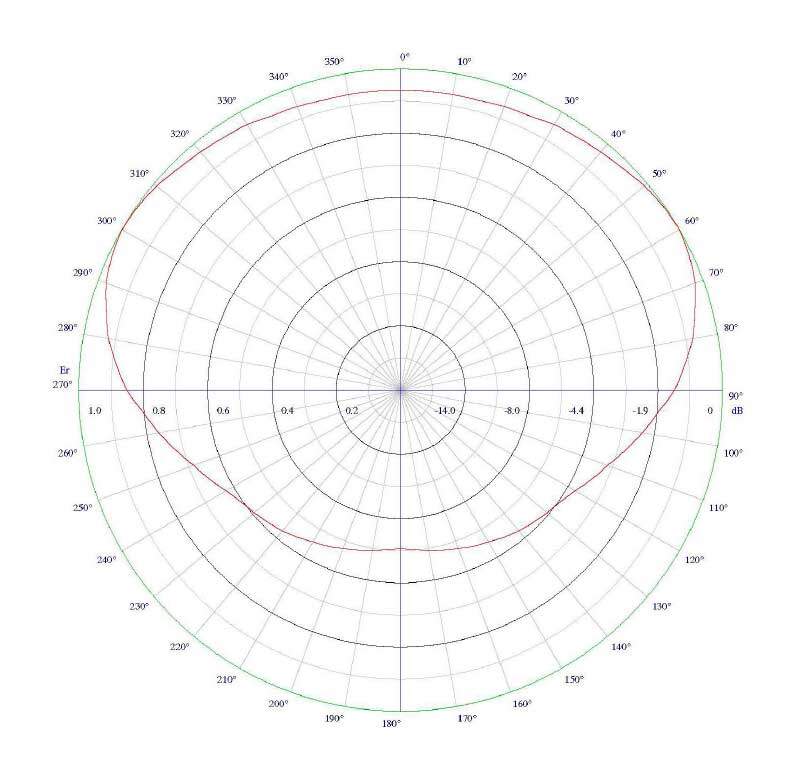

- Omni-Directional. The radiation pattern is omnidirectional.
Antenna systems. By stacking more antennas it is possible to obtain customized patterns, to increase the gain and the power handling capacity according to user’s requirements. Custom patterns, electrical beam tilt and null fill designs are available upon request. - Broadband. Suitable for single channel or broadband operations with multi-channel combiners.
- Disassemblable. These antennas are disassemblable in order to
reduce the shipment and stocking volumes and costs. - Easy installation. The standard mounting brackets are designed for instant installation on poles with diameters from 32 mm to 90 mm. Special brackets are available upon request.
- Water, icing, moisture protection. The input connector is protected against rain and icing by a special housing. The internal balun is also protected against water, icing and moisture by a sealed housing. State of the art mechanical design. By employing the finest materials (stainless steel, non-corrosive aluminum alloy, marine brass, virgin PTFE) it is assured a longer life service.
P3 SERIES

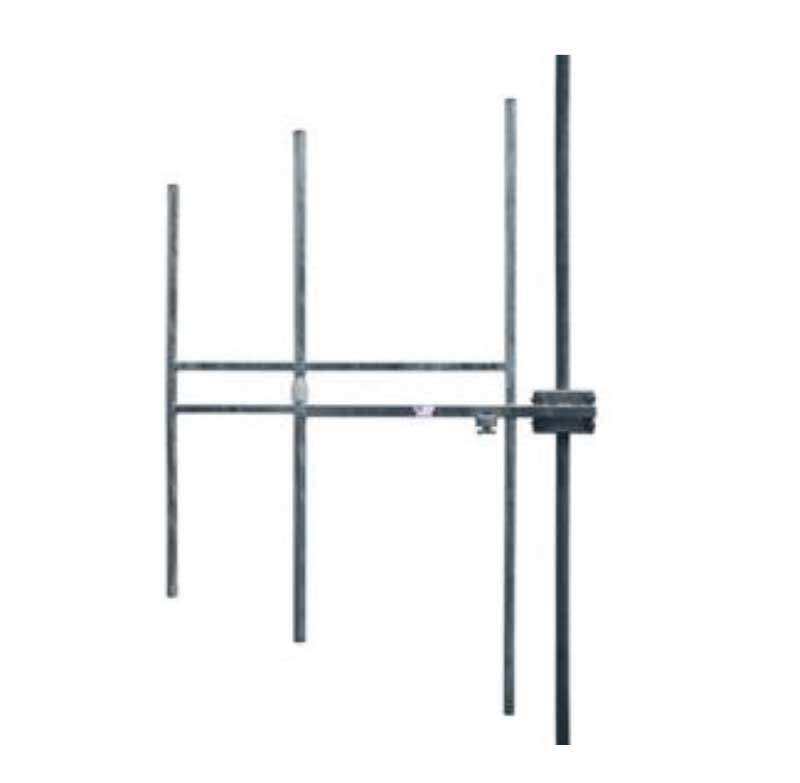

The P3 Vertical Polarization Directional Antenna series is designed
for FM Broadcast Band (87,5 -108 MHz). Each antenna is made of
stainless steel (PX3 models) or galvanized steel (P3 models).

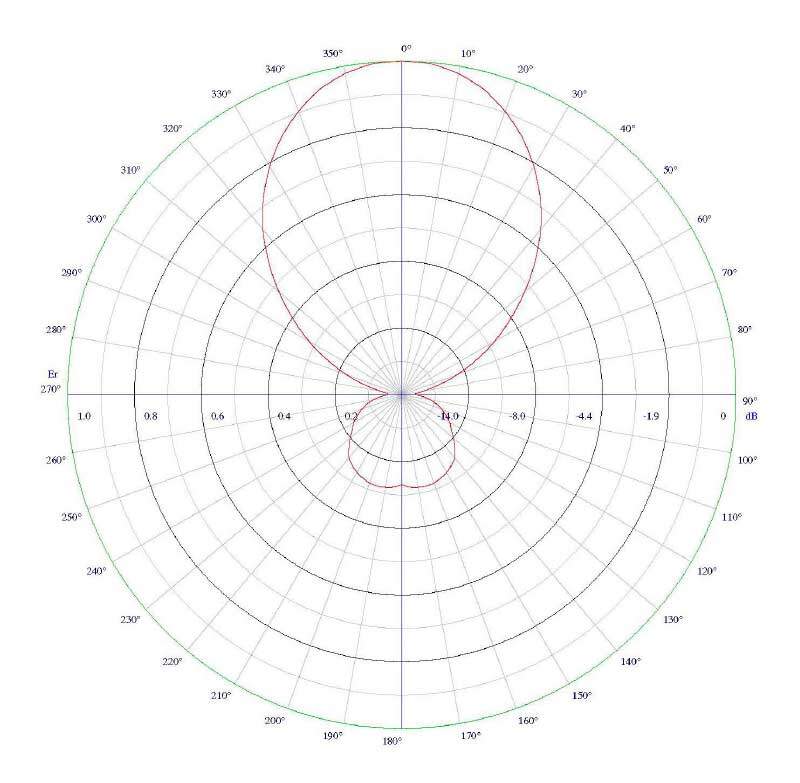

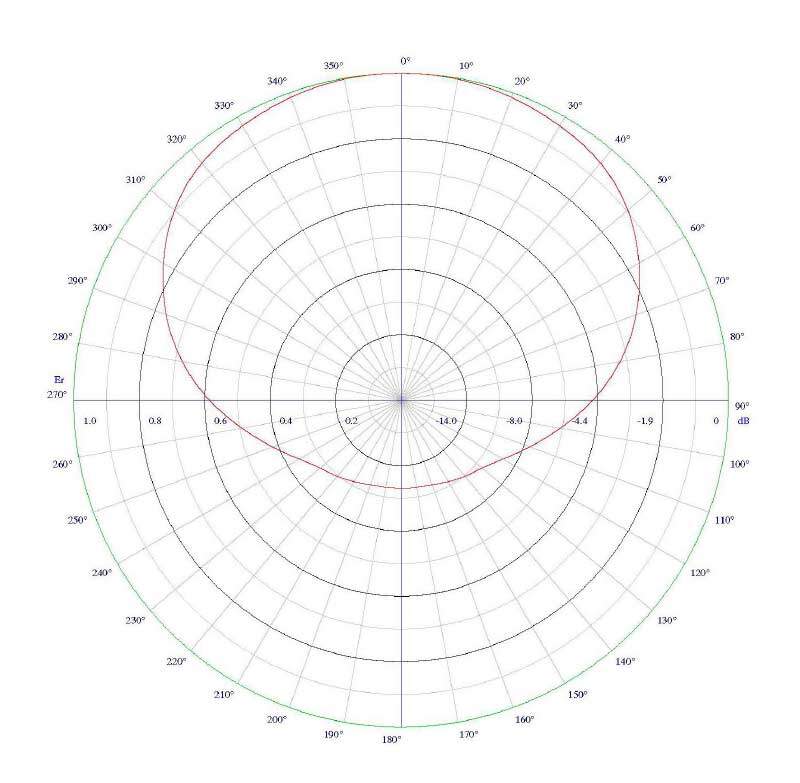

- Directional. The radiation pattern is directional narrow lobe.
- Antenna systems. By stacking more antennas, it is possible to obtain customized patterns, to increase the gain and the power handling capacity according to user’s requirements. Custom patterns, electrical beam tilt and null fill designs are available upon request.
- Broadband. Suitable for single channel or broadband operations with multi-channel combiners.
- Easy installation. The standard mounting brackets are designed for
instant installation on poles with diameters from 32 mm to 90 mm.
Special brackets are available upon request. - Water, icing, moisture protection. The input connector is protected
against rain and icing by a special housing. The internal balun is also protected against water, icing and moisture by a sealed housing. - State of the art mechanical design. By employing the finest materials (stainless steel, non-corrosive aluminum alloy, marine brass, virgin PTFE) it is assured a longer life service.
APFM SERIES

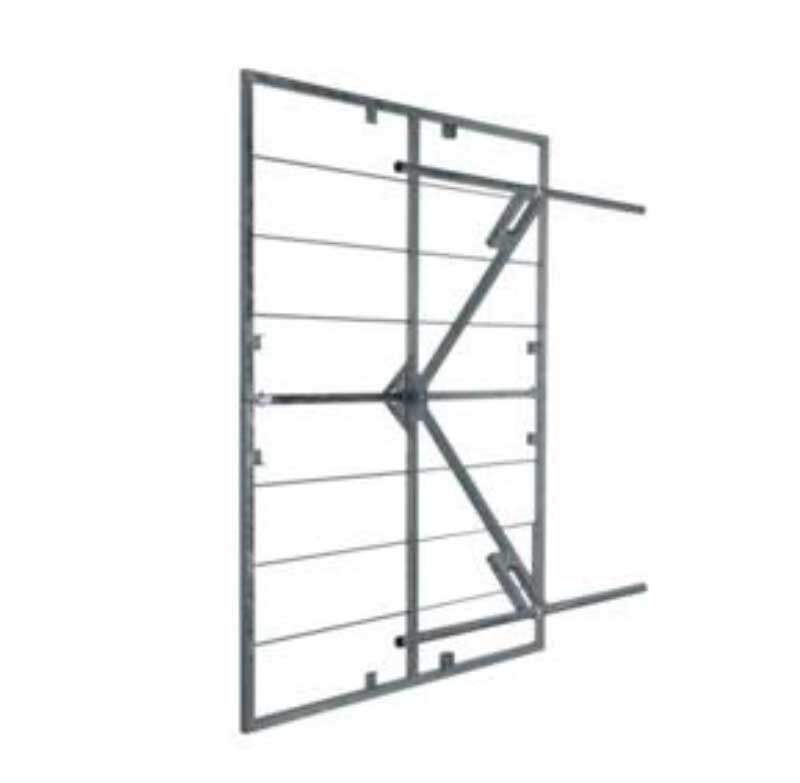

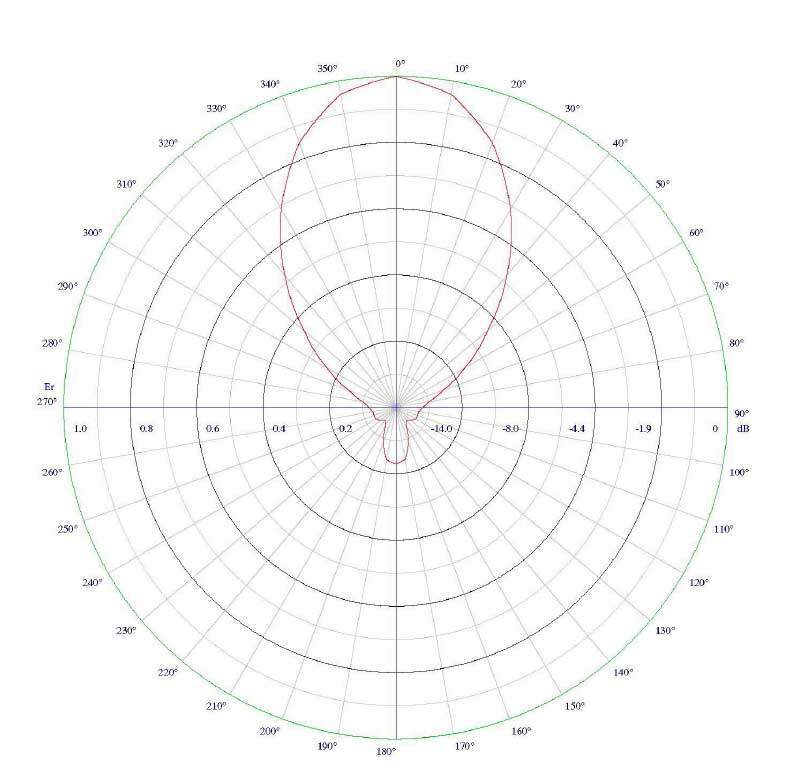

The APFM Panel Antenna series is designed for FM Broadcast Band (87,5 -108 MHz) . Each antenna is entirely made of galvanized and stainless steel and can be composed by 1 single dipole (APFM/SD) or two folded dipoles (APFM/DD).

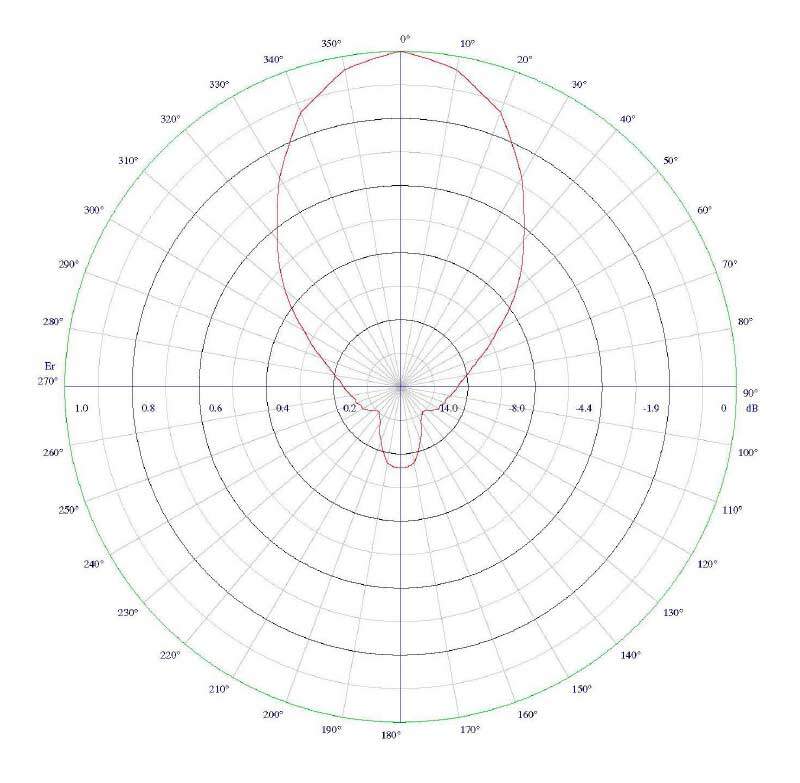

- Directional. The radiation pattern is directional.
- Antenna systems. By stacking more antennas it is possible to obtain customized patterns, to increase the gain and the power handling capacity according to user’s requirements. Custom patterns, electrical beam tilt and null fill designs are available upon request.
- Broadband. Suitable for single channel or broadband operations with multi-channel combiners.
- Disassemblable. These antennas are disassemblable in order to
reduce the shipment and stocking volumes and costs. - State of the art mechanical design. By employing the finest materials (stainless steel, non-corrosive aluminum alloy, marine brass, virgin PTFE) it is assured a longer life service.
STL antennas for FM networks
We also provide a wide variety of STL antennas suitable for all requirements for FM broadcasting contribution and distribution networks.
Logarithmic antennas from 45 MHz to 2.5 GHz (LOG Series): very light and cost saving solution, perfect for short distances link’s hops (less than 15 km)
Parabolic dishes antennas from 0.8 GHz up to 24 GHz (PAR Series): high gain directive antennas with precision pointing system suitable for medium and long distances link’s hops (10 to 100 km)
